D-2 Ballast Water Performance Standard

  • Over 50㎛ : Less than 10inds/㎥
  • 10-50㎛ : Less than 10inds/㎖
  • Bacteria
  • Escherichia Coli : Less than 250cfu/100㎖
  • Intestinal Enterococci : Less than 100cfu/100㎖
  • Vibrio Cholerea : Less than 1cfu/100㎖

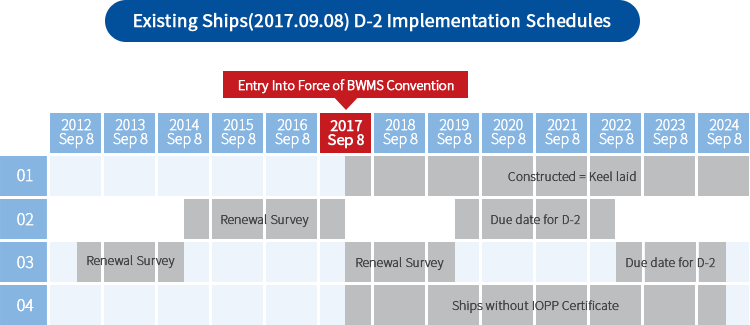

Ballast Water Treatment Implementation Schedule

New Ships should have BWTS or BWMS installed starting from 2017. 09. 08

  1. Ships constructed on or after 8 September 2017 shall comply with the D-2 standard for ships delivery (Constructed = Keel Laid).
  2. In the case where a previous IOPP renewal survey had been completed between 8 September 2014 and 7 September 2017, the ships shall comply with the D-2 standard by the first IOPP renewal survey after entry into the force of the Convention.
  3. In the case where a previous IOPP renewal survey had been completed between 8 September 2012 and 7 September 2014, the ships shall comply with the D-2 standard by the second IOPP renewal survey after entry into the force of the Convention.
  4. Ships not subject to the IOPP renewal survey (normally less than 400GT) shall comply with the D-2 standard by 8 September 2024.

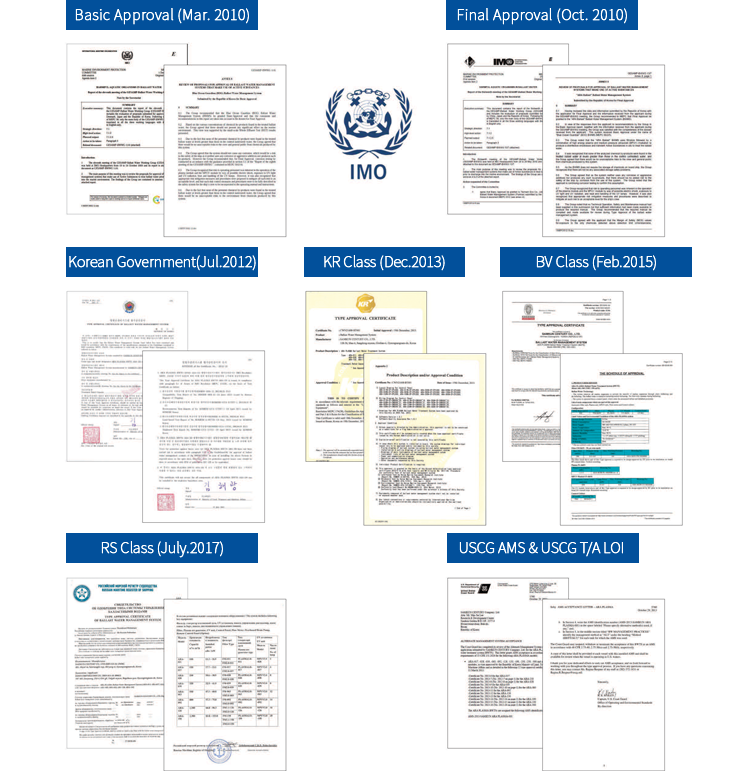

Certificate

ARA PLASMA BWTS, which was developed by the SAMKUN CENTURY Company, acquired Basic approval for the ballast water treatment system during the MEPC 60 (MEPC 60/2/15) in March 2010 and Final approval during the MEPC 61 (MEPC 61/2/5) in September 2010.


Main processing equipment of ARA PLASMA BWTS

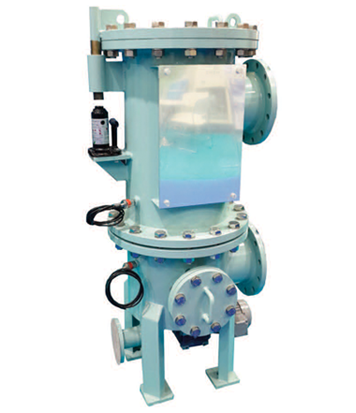

    Filtration

  • It removes large particles and organisms larger than 50㎛ in ballast water.
  • It automatically removes any substances in filter cartridges by housing an internal pressure increase.
  • It is highly accurate and reliable.
  • Specification (for 250m3/hr)
  • Mesh size : 50 µm
  • Design pressure : 6.6 bar
  • Max. working temp : 50 ºC
  • Power Source : 3 Phase, AC380/440V 50/60Hz

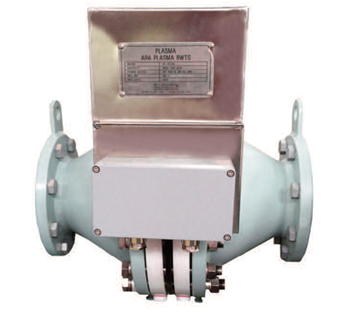

    MPUV

  • It has a high performance in disinfecting bacteria and viruses.
  • There are no formations of residual toxins or harmful substances.
  • Uses a wavelength of UV-C(200~280nm) to sterilize microorganisms.
  • Specification (for 250m3/hr)
  • UV sensor : 0-500mW/cm2
  • Temperature sensor : PT-100
  • Wiper Seal : EPDM
  • UV chamber : STS 316L

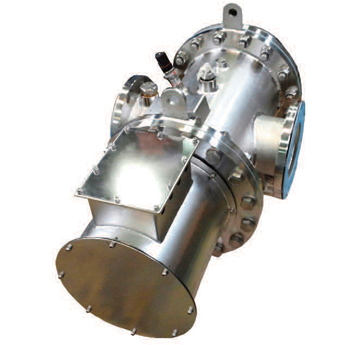

    MPUV

  • It has a high performance in disinfecting bacteria and viruses.
  • There are no formations of residual toxins or harmful substances.
  • Uses a wavelength of UV-C(200~280nm) to sterilize microorganisms.
  • Specification (for 250m3/hr)
  • UV sensor : 0-500mW/cm2
  • Temperature sensor : PT-100
  • Wiper Seal : EPDM
  • UV chamber : STS 316L

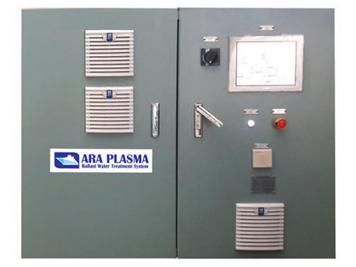

    Control Panel

  • Users conveniently operate “ARA PLASMA BWTS” by touchscreen.
  • The status of each module and any alarm messages are easily monitored in realtime.
  • The Control panel consists of four parts; monitoring & operating, main switch, emergency stop switch and cabinet ventilators.
  • Specification (for 250m3/hr)
  • Control panel type : PLC type (Auto)
  • Power Source : AC230V, 1 Phase & DC 24V
  • Frequency : 50/60Hz
  • Color : Munsell no. 7.5BG 7/2

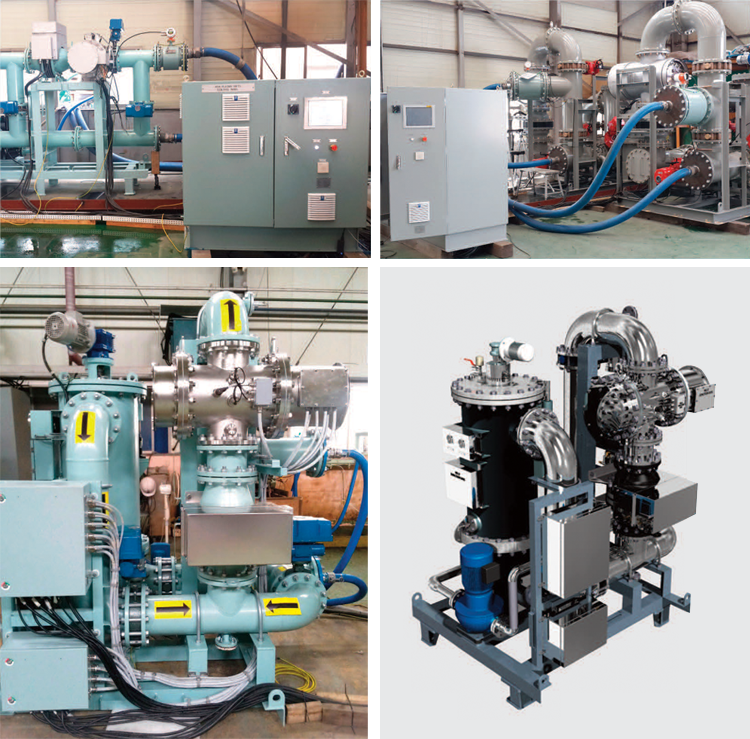

Shop Test

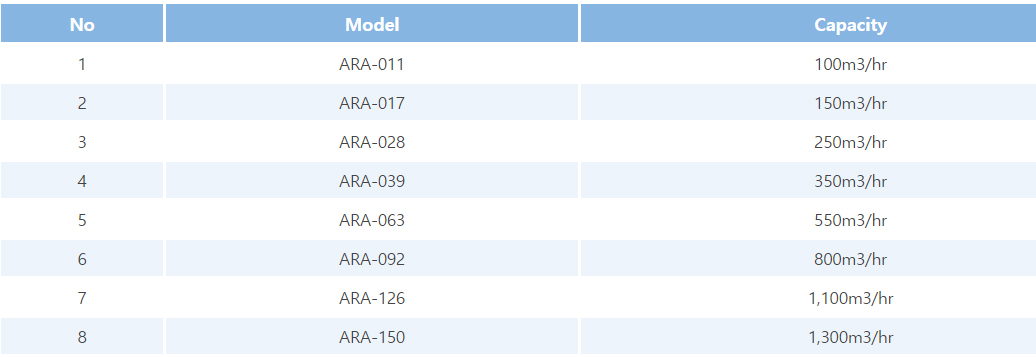

Model

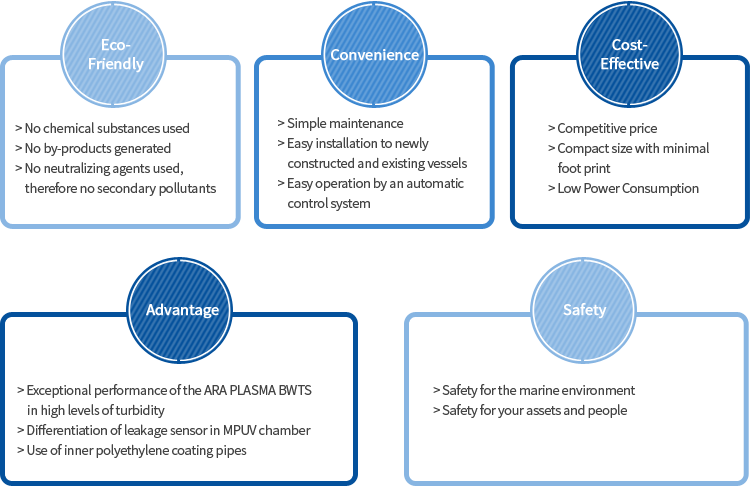

Advantages of ARA Plasma BWTS

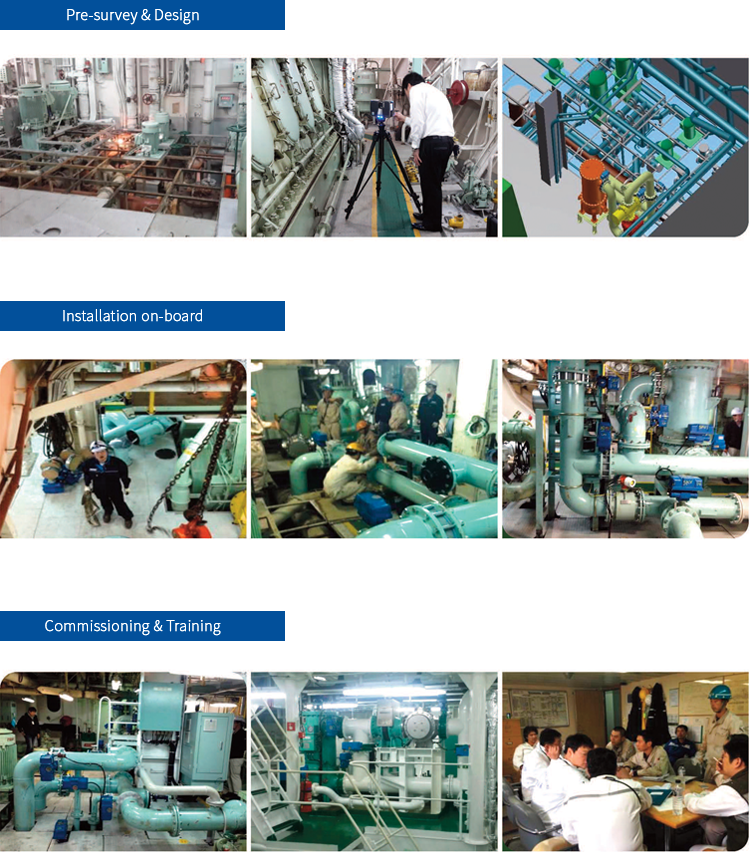

Retrofit
